If you need more information or are interested in spare parts, please contact us or visit the APRO website.

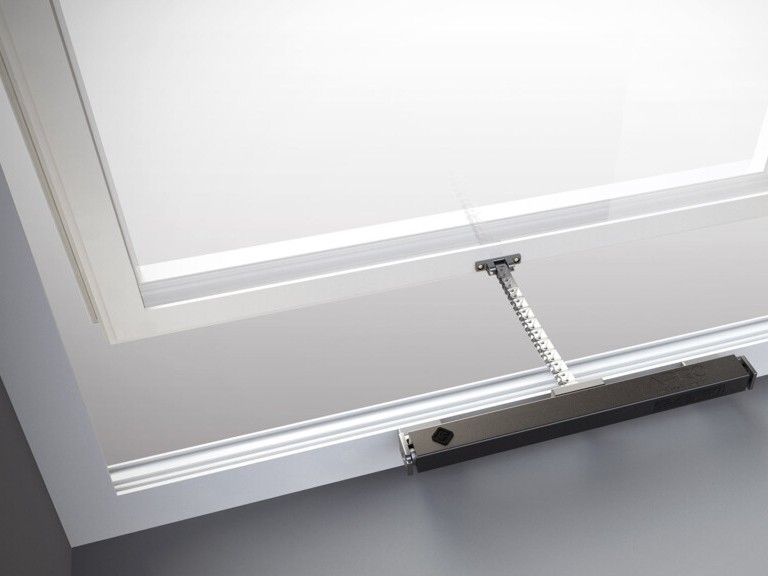

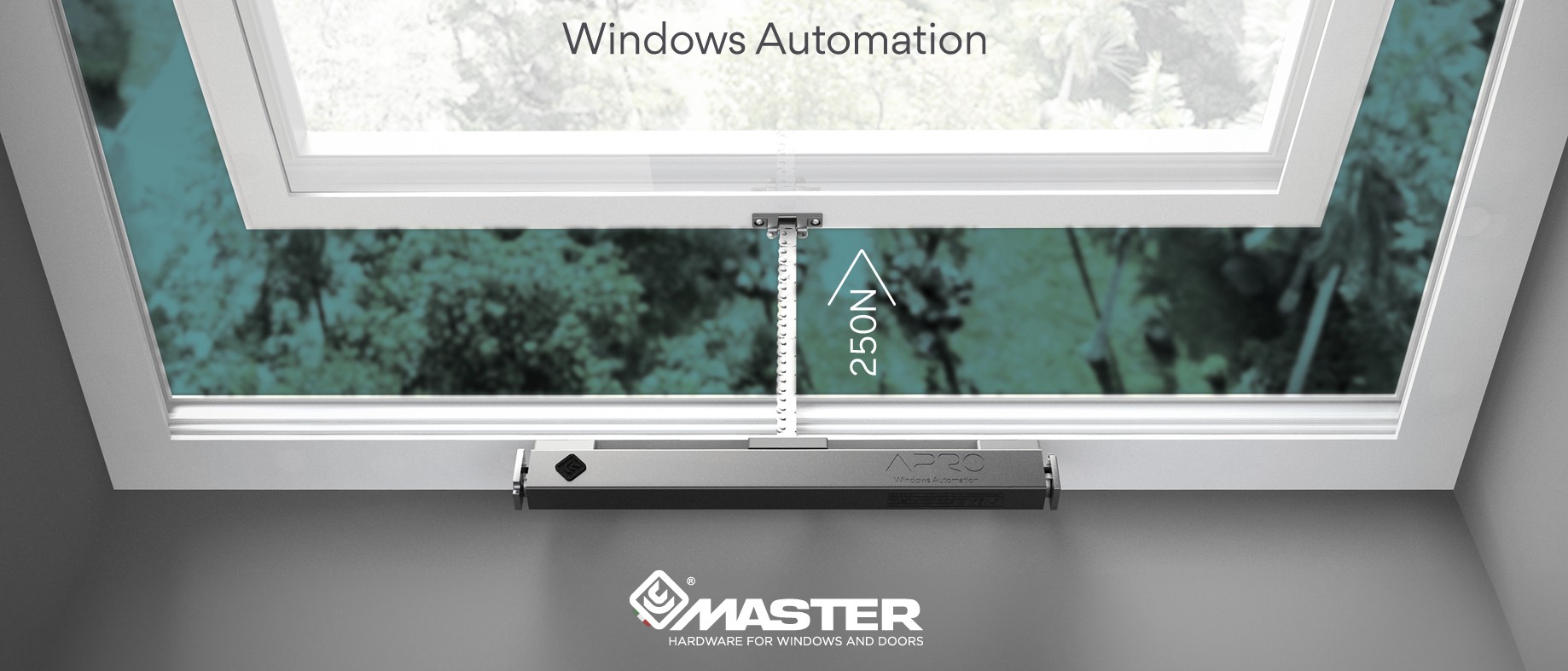

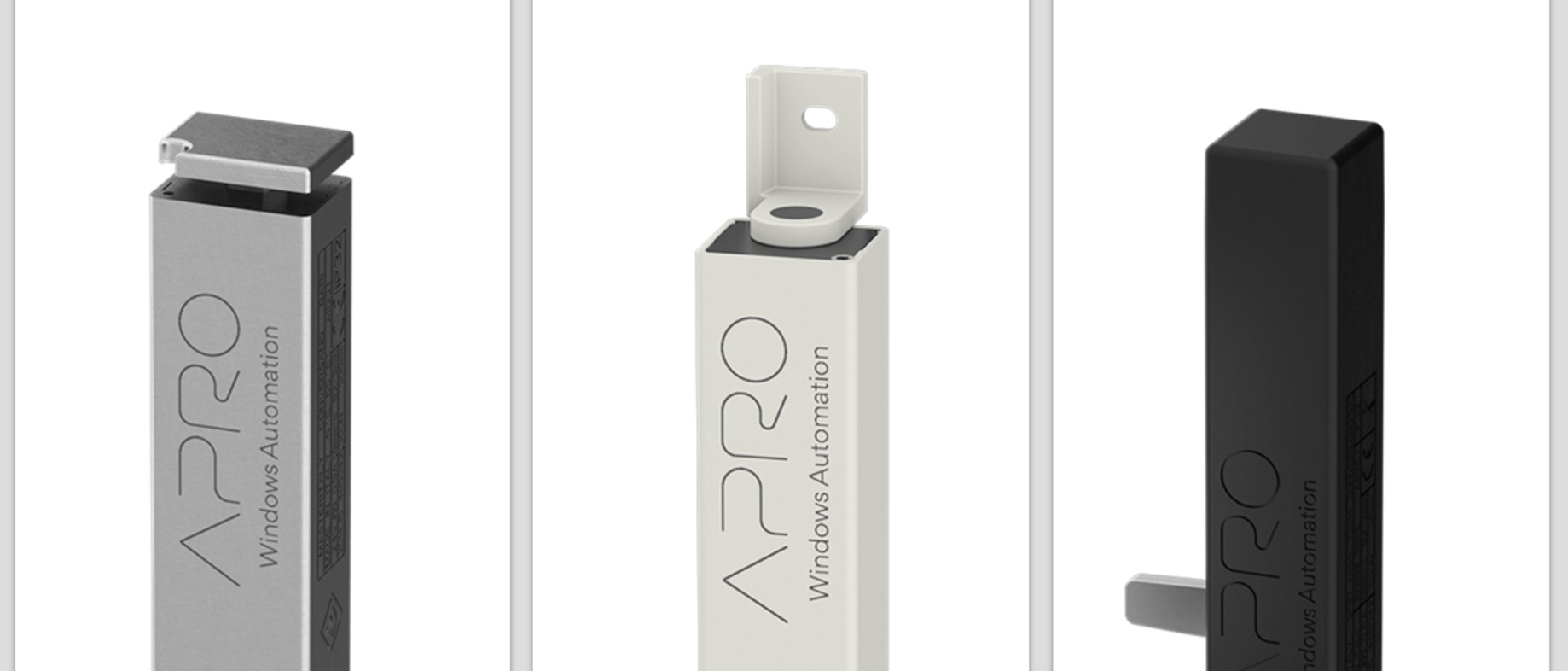

Chain motor (actuator) for the motorized movement of sash, casement or roof windows for ventilation.
Max. 350 N load capacity, various versions, stroke length: 100 – 600mm.
Type example:
| Description | Chain motor |
|---|---|
| Article number | 1123.10P |
| Length | 357mm |
| Stroke length | 120, 160, 210 mm |
| Force | 350N |
| Pressure |  |
| Voltage | 24V DC |
| Current | 0,5A |
| Power | 24 W |
| Speed | 6mm/s |

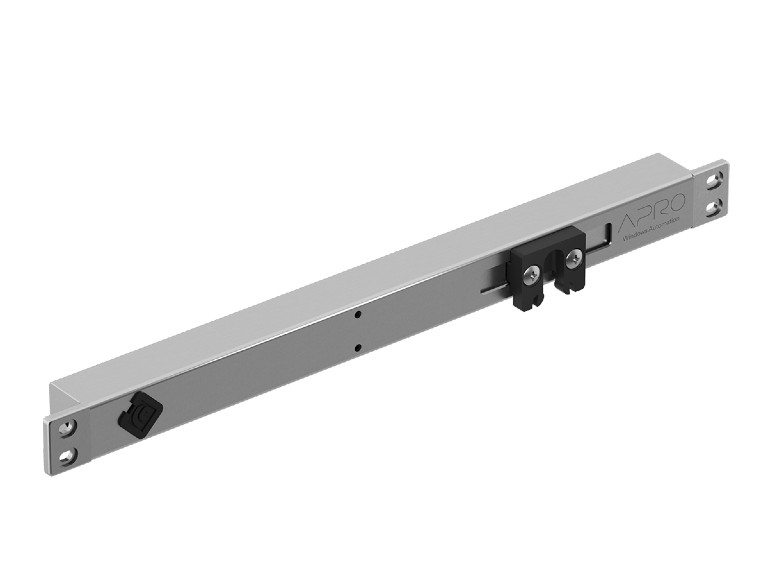

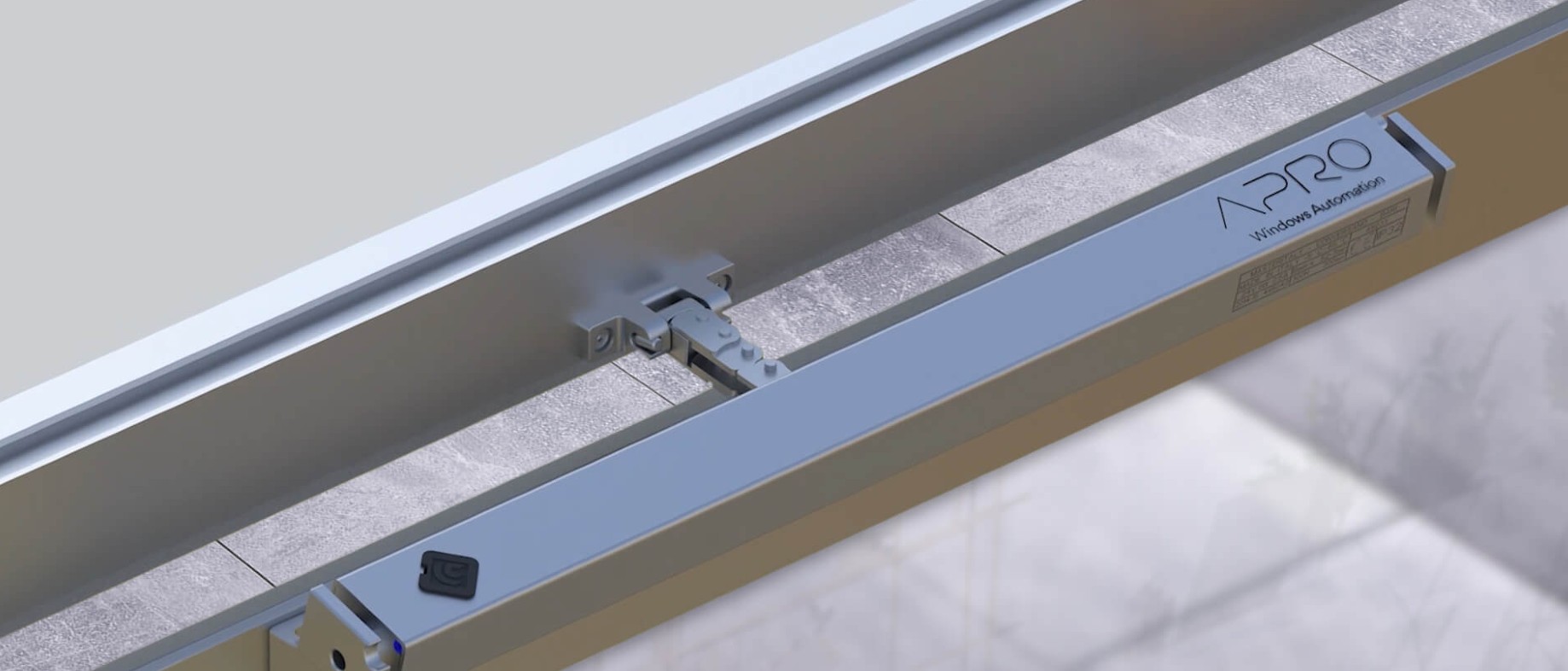

An electromechanical lock that can be built into a frame for a more elegant look. Designed for reduced dimensions to suit minimum profile solutions, with push-button or remote control and integration options.
Type example:
| Description | Electromechanical lock recessed in the frame |
|---|---|
| Article number | LI600N24V34R |
| Length | 305mm |
| Movement | 0-17-34mm |
| Force | 600N |
| Voltage | 24V DC |
| Current | 0.5A |
| Alert | 1A |
| Power | 29 W |
| Speed | 5mm/s |

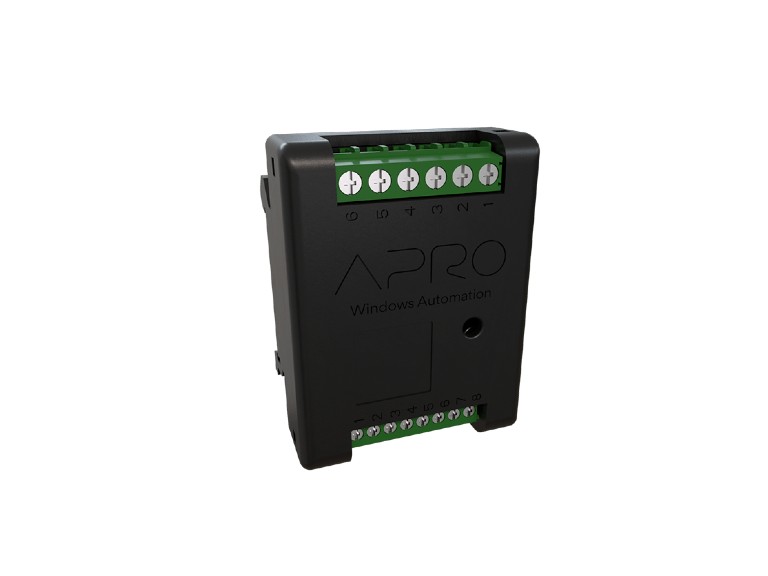

Standard control DIN rail mountable – LIN bus, max 5A, Wifi 2,4Ghz
Type example:
| Description | A1126.5 |
|---|---|
| Dimensions | 63 x 47 x 32 mm |
| Weight | 50 g. |
| Contact | 5A max, dry co. |
| Connect to | WiFi 2.4 GHz b,g,n |
| Communication | LIN bus |
| Digital input | 5, 0-24V DC |
| Status lighting | 1 red led |
| T. Range | -40°+85° |
